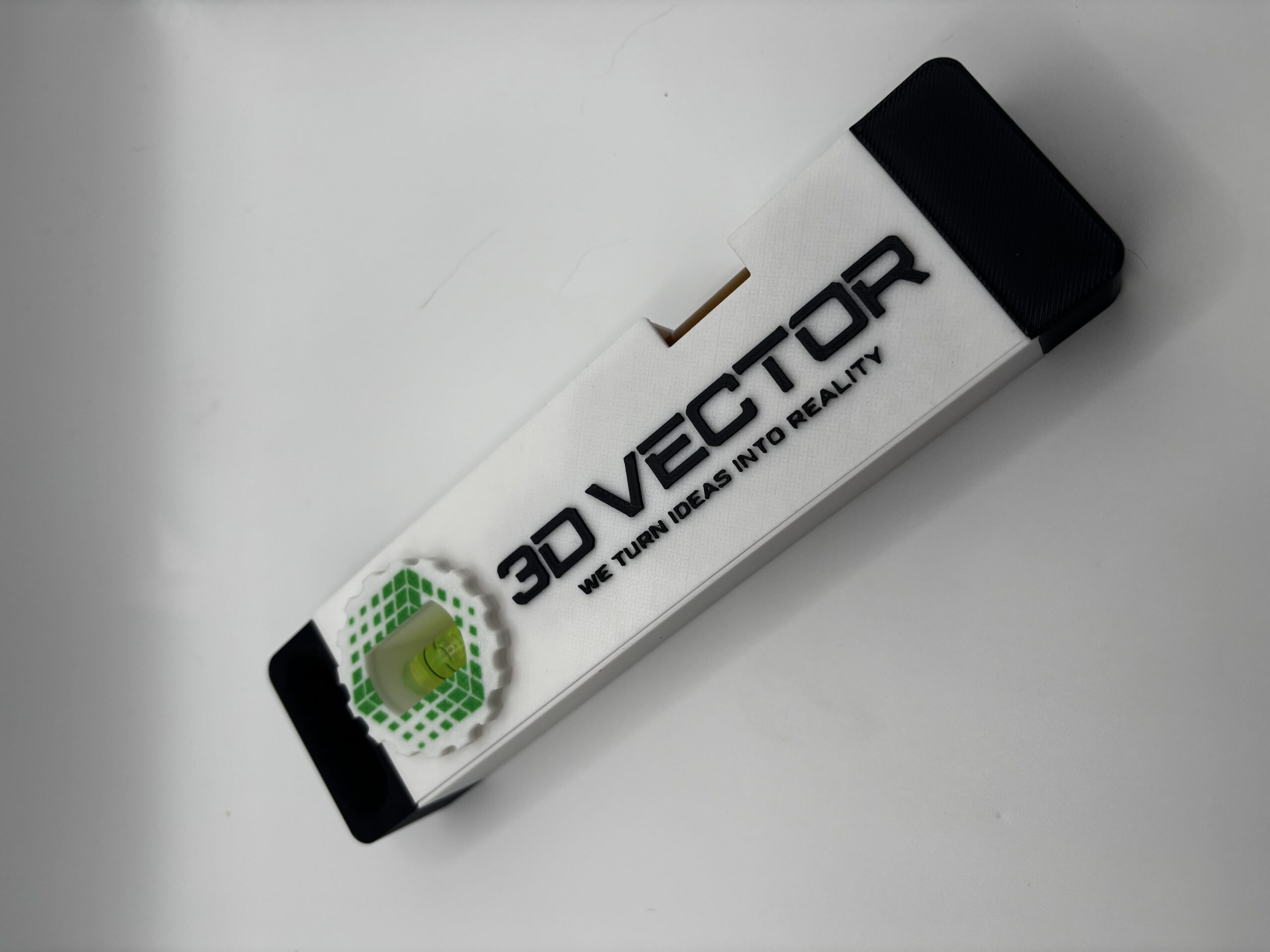

Fused Deposition Modeling (FDM), also known as Fused Filament Fabrication (FFF) in open-source contexts, is one of the most widely used and accessible 3D printing technologies in the world. It works by extruding molten thermoplastic filament through a heated nozzle, building objects layer by layer.
Due to its affordability, versatility, and wide range of materials, FDM has become a go-to additive manufacturing method for rapid prototyping, tooling, and even end-use parts across various industries, including automotive, aerospace, healthcare, and consumer products.
In this article, we’ll explore how FDM works, its process parameters, desktop vs. industrial systems, material choices, design guidelines, post-processing options, advantages, limitations, and best practices. This guide is tailored for engineers, designers, and manufacturers, helping teams at 3D Vector and beyond make informed decisions about FDM printing.
1. How FDM Works
- From CAD to Printed Part: FDM starts with a 3D CAD model (commonly saved in STL, OBJ, or STEP format). The design is processed in slicing software, which divides the model into thin layers and generates toolpaths, the exact routes the extruder will follow. These paths determine layer height, wall thickness, infill pattern, and any necessary supports. Once prepared, the printer heats the filament to its extrusion temperature, forcing it through a nozzle. The molten plastic is precisely deposited along the toolpath, layer by layer, fusing as it cools to form a solid part.
- Layer-by-Layer Fusion: A defining feature of FDM is layer adhesion. Each newly deposited strand slightly remelts and bonds with the layer below through thermal diffusion. Over time, these layers build up to form a complete object. However, because each strand has a visible outline, you’ll often see fine layer lines on the surface of FDM prints.
- Supports and Overhangs: Since FDM cannot print into mid-air, support structures are required for overhangs or complex shapes. These supports are automatically generated by the slicer and printed in either the same material or a dissolvable one. After printing, they’re removed mechanically or chemically.
- Shells and Infill: To save time and material, FDM parts are typically not solid. The exterior surface (shells or perimeters) defines the shape and strength, while the interior is filled with a patterned infill, such as grid, honeycomb, or gyroid, at a chosen density. Increasing infill density improves strength but also increases material usage and print time.
2. Key Process Parameters
In FDM printing, precise control over process parameters determines print quality, strength, and surface finish.
- The nozzle temperature, typically between 180 °C and 300 °C depending on the material, affects layer bonding and filament flow. If it’s too low, adhesion weakens; too high, and stringing or rough surfaces occur.
- The bed temperature (around 20 °C–120 °C) helps parts stick to the build surface and prevents warping, especially important when printing ABS or polycarbonate.
- Layer height (0.1–0.4 mm) affects resolution: thinner layers produce smoother details but extend print times.
- Print speed(30–150 mm/s) balances speed and quality; slower speeds usually yield stronger and more accurate results.
- Cooling fans solidify extruded material quickly, improving overhangs, but excessive cooling can cause weak bonding between layers.
- Retraction settings prevent stringing by pulling filament back during travel moves, while the extrusion multiplier controls how much material is pushed through the nozzle, critical for avoiding gaps or overfilling.
- Finally, shell thickness, infill density, and pattern strongly influence strength, weight, and print duration.Industrial FDM systems often automate or fine-tune these parameters for consistent and repeatable results.
3. Desktop vs. Industrial FDM Systems
Although desktop and industrial FDM printers share the same working principle, they differ in precision, scale, and performance.
Desktop FDM printers are compact, affordable, and ideal for prototyping or educational use. They typically offer build volumes around 200 mm³ and support common filaments such as PLA, ABS, PETG, and TPU. Manual calibration and occasional maintenance are needed, and while they’re excellent for concept validation, they’re less suited to long production runs.
Industrial FDM printers, by contrast, are built for professional applications. They feature large build envelopes — sometimes exceeding 1 meter — enclosed heated chambers, advanced sensors, and high repeatability. These machines support engineering and high-performance polymers like PEI (ULTEM), PEEK, and carbon-fiber composites.
Desktop systems usually achieve an accuracy of around ±0.3–0.5% with a lower limit of about 0.5 mm, while industrial printers reach ±0.1–0.3% and finer minimum features near 0.2 mm.
While desktop printers are accessible and low-cost, industrial FDM systems deliver superior consistency, automation, and precision — making them better suited for functional prototypes, jigs, fixtures, and end-use parts.
4. Material Options and Their Tradeoffs
One of FDM’s greatest strengths is its broad material ecosystem, ranging from simple, low-cost filaments to advanced composites.
- PLA (Polylactic Acid) is beginner-friendly, easy to print, and offers smooth surface finishes, though it’s brittle and not heat-resistant.
- ABS (Acrylonitrile Butadiene Styrene) is stronger and more temperature-resistant but prone to warping.
- PETG combines flexibility, strength, and ease of printing, offering good chemical resistance.
- TPU and other flexible filaments provide elasticity for soft parts, but can be tricky to print.
For engineering-grade projects, Nylon (PA) delivers excellent wear resistance but requires drying due to moisture absorption. Polycarbonate (PC) offers toughness and heat resistance, while PEEK and PEI (ULTEM) enable high-temperature and chemical-resistant parts suitable for aerospace or automotive use. Composite filaments reinforced with carbon or glass fiber enhance stiffness but demand abrasion-resistant nozzles.
When selecting materials, consider adhesion, moisture sensitivity, operating environment, mechanical properties, and cost. High-performance polymers require advanced printers and precise temperature control but offer unmatched durability.
5. Design Guidelines and Considerations
Designing for FDM differs from traditional manufacturing. To achieve the best results:
- Avoid steep overhangs; stay under 45° angles or use chamfers to reduce supports.
- Orient parts to minimize supports and align layer direction with the primary load path.
- Maintain a minimum wall thickness of 2–3× the nozzle diameter (about 0.8–1.2 mm for a 0.4 mm nozzle).
- Add fillets to the corners to reduce stress and warping.
- If a part exceeds the build volume, split it into segments and assemble post-print.
- Account for anisotropy, parts are weakest between layers, and avoid loading along the Z-axis.
- Factor in thermal shrinkage and allow tolerances for mating parts.
6. Post-Processing Techniques
FDM prints can be enhanced with post-processing for strength or finish.
Common methods include sanding and polishing for smoother surfaces, filling and priming before painting, and acetone vapor smoothing for ABS parts. Epoxy coatings add stiffness and a glossy finish, while machining improves precision on critical features.
For performance enhancement, annealing relieves internal stress and boosts crystallinity, and plating or coating can add protection or aesthetic appeal.
7. Strengths, Limitations, and Common Issues
Strengths
- Affordable equipment and materials
- Broad material selection
- Simple setup and scalability
- Excellent for prototyping and customization
Limitations
- Visible layer lines and lower surface finish quality
- Weaker interlayer bonding (anisotropy)
- Warping and delamination risks
- Slower print times for detailed parts
Common Issues
- Warping: Use a heated bed, adhesion aids, or enclosures.
- Delamination: Increase nozzle temperature or slow cooling.
- Stringing: Adjust retraction settings.
- Under/Over extrusion: Calibrate flow rate.
8. Applications and Use Cases
FDM is used across industries for:
- Rapid prototyping: testing form, fit, and function
- Functional prototypes for mechanical testing
- Tooling, jigs, and fixtures in production environments
- Low-volume end-use parts or customized components
- Educational projects and research
- Medical and dental models (with approved materials)
- Automotive and aerospace parts for lightweighting and testing
While not ideal for ultra-high precision micro features, FDM remains one of the most practical additive methods for functional components and iterative design.
9. Best Practices for Reliable FDM Printing
To achieve consistent quality:
- Calibrate regularly — level the bed, clean nozzles, and check mechanical alignment.
- Store filament properly in sealed containers with desiccants.
- Orient parts strategically to reduce supports and align layers with loads.
- Use proper cooling — more for overhangs, less for bonding.
- Monitor first layers for adhesion and adjust temperatures as needed.
- Prototype with PLA before switching to advanced materials.
- Document settings and results to refine future prints.
10. Frequently Asked Questions
Q: What makes FDM different from other 3D printing methods?
A: FDM uses thermoplastic extrusion, making it cost-effective, versatile, and easy to operate compared to resin-based or powder-bed systems.
Q: Is FDM the same as FFF?
A: Not exactly. FDM is a trademarked term owned by Stratasys, while FFF is the open-source equivalent. Both refer to similar extrusion-based processes.
Q: Can FDM produce end-use parts?
A: Yes. With strong materials like Nylon or carbon-filled filaments, FDM can produce durable, functional components.
Q: What accuracy can I expect?
A: Desktop FDM printers achieve around ±0.3–0.5%, while industrial systems reach ±0.1–0.3%, depending on calibration and material.
Closing Thoughts
For a company like 3D Vector, Fused Deposition Modeling offers a reliable, cost-effective, and scalable entry into additive manufacturing. It enables rapid prototyping, design iteration, and custom production without expensive tooling.
To fully harness FDM:
- Design with the process in mind — minimize supports and consider anisotropy.
- Choose materials strategically for your application.
- Implement proper calibration and documentation to ensure repeatability.
- Invest in industrial FDM systems when scaling for production-level quality.
By combining design expertise, material knowledge, and precise process control, 3D Vector can deliver high-performance FDM parts that balance quality, speed, and cost.
