At 3D Vector, we work with multiple 3D printing technologies, but Selective Laser Sintering (SLS) stands out whenever a project demands strong, accurate, production-grade plastic parts.

SLS uses a high-powered laser to fuse thin layers of thermoplastic powder together inside a heated build chamber. Because the unused powder supports the part as it prints, there’s no need for support structures, and you can pack many parts into a single build. The result is a powerful mix of design freedom, mechanical strength, and production efficiency that few other additive processes can match.

In this article, we’ll walk through how SLS works, where it shines, and why it’s such a smart choice for both prototypes and low-to-medium volume production runs.

What Is SLS 3D Printing and How Does It Work?

SLS belongs to the powder-bed fusion family of additive manufacturing processes.

Very simply:

  1. A thin layer of thermoplastic powder (often nylon or polypropylene) is spread across the build platform.
  2. A laser selectively sinters (fuses) the powder where the 3D model dictates.
  3. The platform lowers, a new powder layer is spread, and the process repeats.
  4. Once the build is complete, the part is “buried” in a cake of unfused powder, which is then removed and recycled.

Because the free powder supports the part during printing, SLS can create complex, self-supporting geometries in a single build — including internal channels, lattice structures, and moving mechanisms.

Cost-Effective Production: Nesting Parts in a Shared Build

One of the biggest advantages of SLS is its efficient use of both machine time and build volume.

1. Batch production in one go

Instead of printing one part at a time, SLS allows us to “nest” many components within the same build volume — side by side and stacked in three dimensions. Think of it like a 3D game of Tetris, where every empty space in the powder bed is an opportunity to add more parts.

This means:

  • You can produce dozens or hundreds of parts in a single run.
  • Different geometries can be combined in a single build as long as they share the same material.
  • The cost per part drops significantly as the build becomes more densely packed.

2. No tooling costs or molds

Traditional manufacturing methods like injection moulding require expensive, time-consuming tooling. For small and medium production runs, the tooling cost alone can make a project unviable.

With SLS:

  • There are no molds to manufacture.
  • Design changes don’t mean scrapping tooling; you simply update the 3D file.
  • This is ideal for bridge production, pilot runs, and parts that are frequently iterated.

For many customers, especially those needing 100–5,000+ units of a part, SLS offers a much more economical route than conventional tooling.

Short Lead Times and High Throughput

Because SLS doesn’t rely on tools, fixtures, or support-removal labour, it is very well suited to fast, repeatable production.

At 3D Vector, an SLS workflow typically looks like this:

  • File preparation & nesting – Your CAD files are checked for printability, oriented for optimal strength and surface finish, and tightly nested to maximize build density.
  • Automated printing – The machine runs largely unattended, building parts layer by layer.
  • Depowdering & inspection – Once cool, parts are removed from the powder cake, cleaned, and visually inspected.
  • Post-processing – Optional finishing, such as media blasting, dyeing, and sealing, can be applied.

This streamlined process allows short lead times from file to finished part, especially compared to casting or molding with lengthy tooling phases. It also makes SLS ideal for on-demand production, where you only print what you need, when you need it.

Strong SLS 3D printed part

Strong, Functional Parts: Mechanical Performance of SLS

SLS is not just about speed; it’s about performance. The process is known for producing parts with mechanical properties that are close to, and in some cases comparable with, those made using traditional plastic manufacturing.

1. High strength and toughness

Common SLS materials like nylon (PA11, PA12) and polypropylene (PP) offer:

  • Good tensile strength
  • High elongation at break (so parts can flex rather than snap)
  • Excellent impact resistance

This makes SLS a go-to choice for:

  • Functional prototypes under real-world load
  • Clips, hinges, brackets, and snap-fit components
  • Structural housings and enclosures

2. Near-isotropic material behaviour

In many 3D printing processes, parts are weaker along the build direction because layers can delaminate. SLS parts are often much closer to isotropic, meaning their mechanical properties are more uniform in all directions.

That matters when:

  • Parts experience load from multiple angles
  • You need consistent performance regardless of orientation
  • Safety or compliance requires predictable mechanical behaviour

3. High density and dimensional stability

SLS parts typically achieve high density and excellent dimensional stability. With proper design and process control, you can expect:

  • Fine detail reproduction
  • Reliable snap-fits and mating features
  • Good resistance to deformation and creep over time

SLS technology

Accuracy, Detail, and Surface Finish

SLS is well known for its high resolution and repeatability.

Typical benefits include:

  • Fine layer thickness (often 0.1 mm or less), enabling sharp edges and small features
  • Reliable tolerances suitable for functional assemblies
  • A slightly textured, matte surface that can be improved further through post-processing

At 3D Vector, we can refine SLS parts using:

  • Media blasting to smooth surfaces and remove any remaining powder
  • Dyeing to add uniform colour to parts
  • Sealing or coating to improve durability, appearance, and sometimes mechanical performance, and moisture resistance

These finishing options help turn a strong, functional SLS part into a visually appealing, customer-ready product.

Design Freedom: Complex Geometries Without Supports

One of the biggest design advantages of SLS is that no support structures are needed during printing. The surrounding powder acts as a natural support.

This opens up design possibilities that are difficult or impossible with other methods:

  • Internal channels and ducts for cooling, airflow, or fluid routing
  • Lightweight lattice structures that maintain strength while reducing weight and material cost
  • Moving assemblies printed in one piece, such as hinges, springs, and living joints
  • Organic, ergonomic shapes that would be very complex to machine or mould

Because you’re not paying to remove supports or clean up support scars, you have more flexibility to design for function and performance, not just manufacturability.

Material Options and Application-Specific Choices

SLS technology supports a growing portfolio of engineering-grade polymers. At 3D Vector, we can help you match material to your application, including options such as:

  • PA11 / PA12 (Nylon)
    • Great all-rounders for strength, toughness, and chemical resistance
    • Used for housings, brackets, jigs, fixtures, and many end-use parts
  • Polypropylene (PP)
    • Excellent chemical resistance
    • Lower density for lightweight components
    • Ideal for fluid-handling components, clips, or parts that need to flex repeatedly
  • Filled or specialty powders (depending on project requirements)
    • Glass- or mineral-filled nylons for increased stiffness
    • ESD-safe or flame-retardant grades for electronics or regulated environments

As material science continues to evolve, SLS remains one of the most flexible platforms for new powders, which means more options for tailored mechanical, thermal, or electrical properties over time.

Automated and Value-Added Post-Processing

The power of SLS doesn’t stop when the build finishes. Post-processing adds another layer of value:

  • Shot or media blasting cleans and slightly smooths surfaces
  • Dyeing produces consistent, deep colours for customer-facing parts
  • Sealing or impregnation can improve mechanical performance, surface durability, or moisture resistance
  • Machining or threading of critical surfaces can be added where ultra-tight tolerances are required

For many projects, this combination of SLS printing + targeted post-processing provides a practical alternative to injection molding, especially when you need strong, good-looking parts without investing in steel tooling.

Typical Use Cases for SLS 3D Printing

Because of its unique balance of cost, speed, and performance, SLS is widely used across industries. Common applications we see at 3D Vector include:

  • Functional prototypes that must withstand testing, assembly, and real-world use
  • End-use production parts in low to medium volumes
  • Jigs, fixtures, and tooling aids for manufacturing and assembly lines
  • Snap-fit enclosures and housings for electronics and mechanical systems
  • Custom connectors, brackets, and mounts where off-the-shelf components don’t exist
  • Lightweight structural parts with internal lattices for weight reduction

Because there’s no minimum order quantity tied to tooling, SLS is also perfect for spare parts, custom variants, and late-stage design changes.

SLS vs Other 3D Printing and Traditional Processes

When should you choose SLS over other options like FDM, SLA, CNC machining, or injection moulding?

Choose SLS when:

  • You need strong, functional plastic parts with good overall mechanical performance
  • Geometries are complex, with internal passages or undercuts, making moulding difficult
  • Volumes are too low to justify tooling, but too high for slow, one-off methods
  • You want to consolidate assemblies into fewer, multi-functional parts

Other processes may be better when:

  • You’re producing very large parts that exceed SLS build volumes
  • You need mirror-smooth, ultra-optical surfaces out of the machine (SLA can be better here)
  • You’re manufacturing very high volumes, where injection molding’s cost per part wins out despite the tooling cost

A big part of our role at 3D Vector is helping you choose the right technology for each project, and SLS is often at the top of the list for robust, production-grade plastics.

Why Partner with 3D Vector for SLS 3D Printing?

SLS is a powerful technology, but the real results come from combining the right process, material, and design expertise.

When you work with 3D Vector on an SLS project, we can:

  • Review your CAD files and suggest design tweaks to reduce cost, improve strength, or simplify assembly.
  • Help you select the right material based on performance, environment, and regulatory needs.
  • Optimise nesting and build strategy to keep unit costs competitive.
  • Apply post-processing so parts arrive ready for testing, assembly, or direct end use.

Whether you’re looking to replace traditional moulding on a small run, validate a new product with production-grade prototypes, or launch a custom, on-demand part line, SLS is one of the most flexible tools you can have in your manufacturing toolkit.

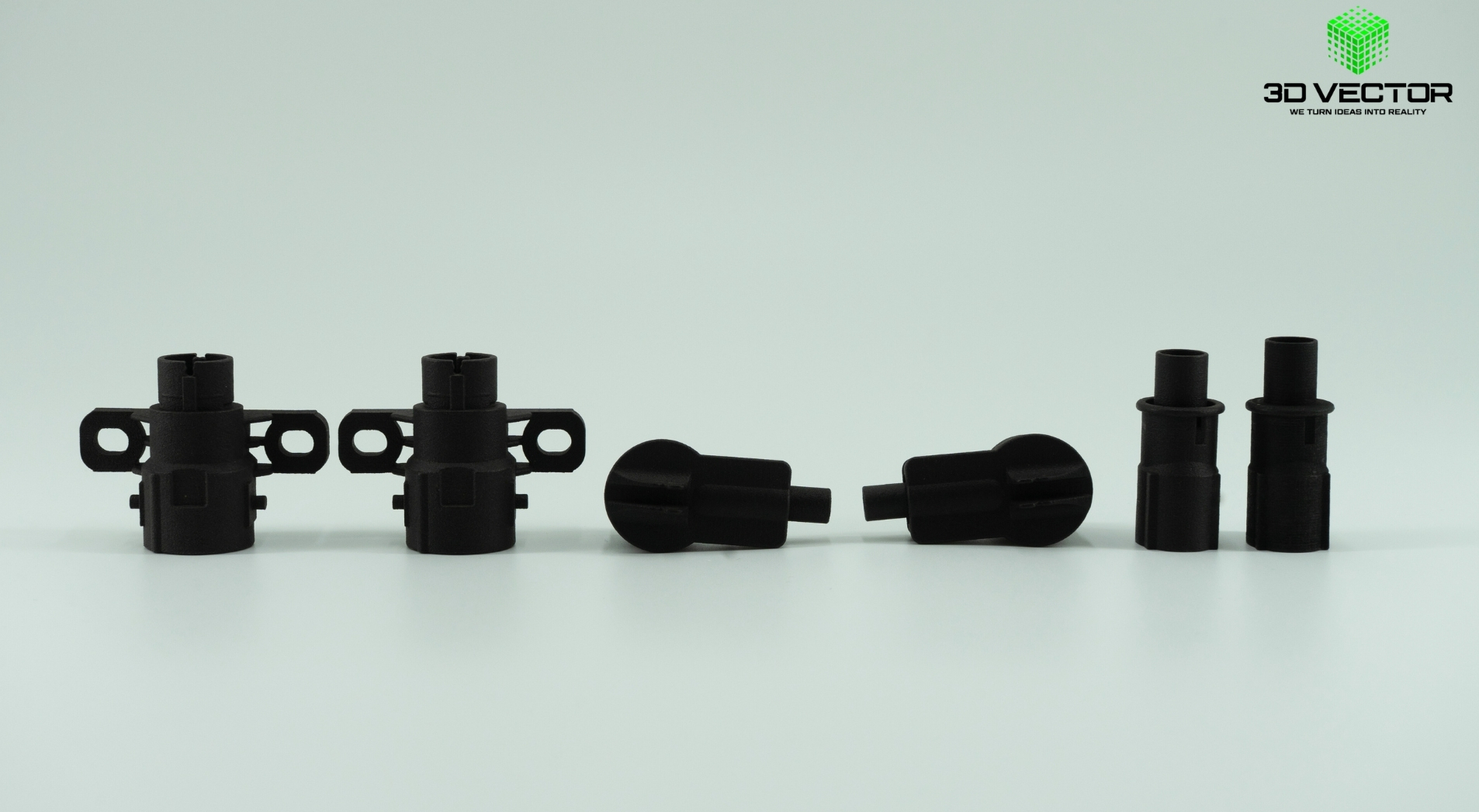

SLS 3D printed parts

Ready to Explore SLS for Your Next Project?

If you’re considering SLS 3D printing for prototypes or production parts, 3D Vector can help you move from concept to physical, testable components quickly and efficiently.

Share your CAD files, basic requirements, and target quantities, and we’ll recommend the best SLS material, design approach, and production strategy for your project.
